T-Clip® PRO Tile System in Refrax® Top Material

Environment

T-Clip® PRO Tile System used to replace other lining solutions. It can be employed in all installation systems.

Installation & Conditions:

  • Anchorage via thread bolts
  • A backfilling mix of Refrax® PLUSFLOW ensures high thermal conductivity and added protection against flue gases and anchor corrosion
  • Ceramic fiber gaskets compensate for movement in the boiler

Challenge

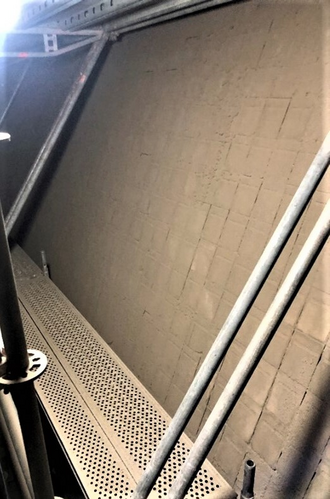

WTE-T-Clip Pro
Other suppliers lining solutions had major problems with heavy ash adhesion. This limited heat transfer and thus gave a very poor efficiency for the boiler. There were additionally Health and Safety concerns related to dangerous conditions encountered at inspections or during boiler maintenance. The old system with potential for the heavy ash / slag build-up in upper levels falling could endangering personnel when they entered the boiler.

Our Solution T-Clip® PRO Tile System

WTE-T-ClipPRO

Greater efficiency of T-Clip® PRO system gives a more efficient boiler and lower temperatures on the surface of the tiles.

This in conjunction with the smooth profile of the lined wall and low co-efficient of adhesion for the Refrax® TOP material, resulted in a huge reduction of ash sticking to the walls.

Today, after many years of co-operation, the boiler remains very clean in operation. Any ash is loose and easily cleaned with their water lance and a shower clean system when required. The heavy ash concerns are a thing of the past, eliminating any health and safety issues and ensuring optimum operational efficiency.
x
x

T-Clip® PRO Tile System Benefits

easy-to-install-2
Reduction of ash sticking
porosity
Lower temperatures on the surface
Optimum
More efficient boiler

Result Summary

Saint-Gobain is well known for their long life solutions. Working with trusted partners, like Schlüssler Feuerungsbau GmbH, we’ve supplied solution and enhanced the day-to-day running of many plants like this.

Saint-Gobain is a true manufacturer and offer their materials and tile designs to solve todays’ challenging conditions.
